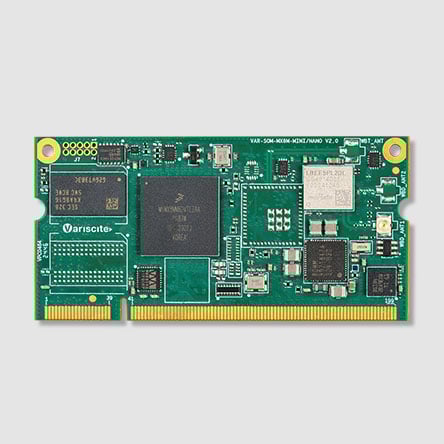

VAR-SOM-MX8M-NANO System on Module

Starting from: $44.00

Based on NXP’s i.MX 8M Nano, 1.5GHz Quad-core Cortex-A53™ plus 650MHz Cortex-M7™ real-time processor, the VAR-SOM-MX8M-NANO is an ideal solution for cost-sensitive designs that require power-efficiency and high-performance graphics as well as for general-purpose applications.
The VAR-SOM-MX8M-NANO is pin-compatible with the VAR-SOM Pin2Pin family. The Pin2Pin family offers easy scaling between a wide range of modules based on i.MX8, i.MX8X, i.MX8M Mini, i.MX8M Nano, i.MX6 and i.MX6UL processors.

Note: All SoMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Wiki site.

Contact us for details about optimized cost/performance SoM configurations, available at low volumes of 25+ units.

Product specification

Stock configurations for Evaluation and Prototype

Ships within 4 working days
VAR-SOM-MX8M-NANO V2 with 1.5GHz CPU, Wi-Fi 6 & Commercial temperature range
  • NXP i.MX 8M Nano Quad, 1.5GHz, Cortex-A53 + Cortex-M7
  • 1024MB RAM, 16GB eMMC
  • Audio codec
  • GbE, CAN/CAN-FD
  • Wi-Fi 802.11ax/ac/b/g/n
  • Bluetooth 5.4/BLE
  • LVDS interface
  • Resistive touch panel
  • 0 to 70°C
$110Per UnitAdd to cart
VAR-SOM-MX8M-NANO V2 with 1.4GHz CPU, Wi-Fi 6 & Industrial temperature range
  • NXP i.MX 8M Nano Quad, 1.4GHz, Cortex-A53 + Cortex-M7
  • 1024MB RAM, 16GB eMMC
  • Audio codec
  • GbE, CAN/CAN-FD
  • Wi-Fi 802.11ax/ac/b/g/n
  • Bluetooth 5.4/BLE
  • LVDS interface
  • Resistive touch panel
  • -40 to 85°C
$130Per UnitAdd to cart
VAR-SOM-MX8M-NANO with 1.5GHz CPU & Commercial temperature range
  • NXP i.MX 8M Nano Quad, 1.5GHz, Cortex-A53 + Cortex-M7
  • 1024MB RAM, 16GB eMMC
  • Audio codec
  • GbE, CAN/CAN-FD
  • Wi-Fi 802.11ac/a/b/g/n
  • Bluetooth 5.2/BLE
  • LVDS interface
  • Resistive touch panel
  • 0 to 70°C
$110Per UnitAdd to cart
VAR-SOM-MX8M-NANO with 1.4GHz CPU & Industrial temperature range
  • NXP i.MX 8M Nano Quad, 1.4GHz, Cortex-A53 + Cortex-M7
  • 1024MB RAM, 16GB eMMC
  • Audio codec
  • GbE, CAN/CAN-FD
  • Wi-Fi 802.11ac/a/b/g/n
  • Bluetooth 5.2/BLE
  • LVDS interface
  • Resistive touch panel
  • -40 to 85°C
$130Per UnitAdd to cart

Special Offer for 1,000 Units

Baseline Configuration: VAR-SOM-MX8M-NANO
  • NXP i.MX 8M Nano Quad, 1.5GHz, Cortex-A53 + Cortex-M7
  • 512MB RAM, 256MB NAND
  • 0 to 70°C
$44Per UnitAdd to cart
