VAR-SOM-MX93 System on Module

Starting from: $39.00

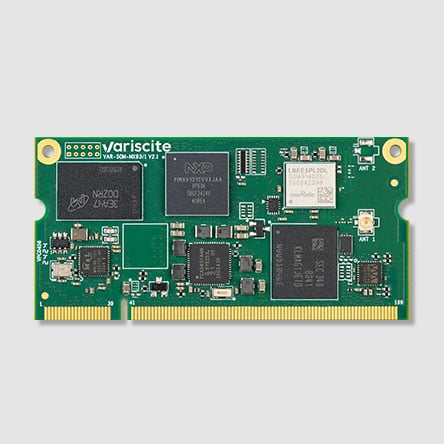

The VAR-SOM-MX93 is based on 1.7GHz Dual Cortex™-A55 NXP i.MX 93 processor with 250MHz Cortex-M33 Real-time co-processor. The SoM delivers energy flex architecture, built-in security features along with industrial features such as dual CAN bus, dual GbE, and industrial temperature grade. In addition, it offers integrated AI/ML NPU acceleration and a wide set of connectivity options.

The VAR-SOM-MX93 is compatible with the VAR-SOM Pin2Pin family.

Note: All SoMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Wiki site.

Contact us for details about optimized cost/performance SoM configurations, available at low volumes of 25+ units.

Product specification

Stock configurations for Evaluation and Prototype

Ships within 4 working days
VAR-SOM-MX93 with 1.7GHz CPU, Wi-Fi 6 & Extended temperature range
  • NXP i.MX 93 Dual, 1.7GHz, Cortex-A55 + Cortex-M33
  • 2048MB RAM, 16GB eMMC
  • Audio codec
  • 2x CAN/CAN-FD, 2x GbE
  • Wi-Fi 802.11ax/ac/a/b/g/n
  • Bluetooth 5.4/BLE
  • Resistive touch panel
  • -25 to 85°C
$100Per UnitAdd to cart

Special Offer for 1,000 Units

Baseline Configuration: VAR-SOM-MX93
  • NXP i.MX 93 Single 1.7GHz, Cortex-A55 + Cortex-M33
  • 1024MB RAM, 8GB eMMC
  • 0 to 70°C
$39Per UnitAdd to cart
