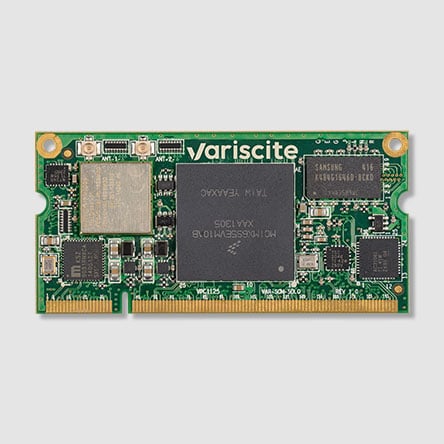

VAR-SOM-SOLO System on Module

Starting from: $110.00

Staying on-trend with the market’s shift towards a cost-effective highly integrated off-the-shelf solution, the VAR-SOM-SOLO features NXP i.MX6 1GHz Cortex-A9 processor, small dimensions and a slim-lined price-point.

Note: All SOMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Wiki site.

Contact us for details about optimized cost/performance SoM configurations, available at low volumes of 25+ units.

Product specification

Stock configurations for Evaluation and Prototype

Ships within 4 working days
VAR-SOM-SOLO with 1000MHz, Wi-Fi 802.11b/g/n & Commercial temperature range
  • NXP i.MX6 SOLO, 1000MHz, Cortex-A9
  • 1024MB RAM, 512MB NAND, 8GB eMMC
  • Audio Codec
  • 1x GbE
  • 4-wire Touch Panel
  • Wi-Fi 802.11b/g/n
  • Bluetooth 5.1/BLE
  • 0 to 70°C
$110Per UnitAdd to cart
VAR-SOM-SOLO with 800MHz, Dual-band Wi-Fi 802.11a/b/g/n+MIMO & Industrial temperature range
  • NXP i.MX6 SOLO, 800Hz, Cortex-A9
  • 1024MB RAM, 512MB NAND, 8GB eMMC
  • Audio Codec
  • 1x GbE
  • 4-wire Touch Panel
  • Dual-band Wi-Fi 802.11a/b/g/n + MIMO
  • Bluetooth 5.1/BLE
  • -40 to 85°C
$125Per UnitAdd to cart
