Starting from: $50.00

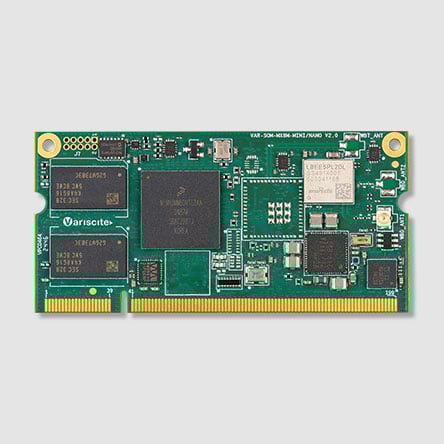

VAR-SOM-MX8M-MINI System on Module

Not sure which SoM fits your needs?
Contact us and get an expert’s opinion

Not sure which SoM fits your needs?
Contact us and get an expert’s opinion

VAR-SOM-MX8M-MINI System on Module

Starting from: $50.00

Based on NXP’s i.MX 8M Mini with 1.8GHz Quad-core ARM Cortex-A53™ plus 400MHz Cortex-M4™ real-time processor, the VAR-SOM-MX8M-MINI is a low-power and cost-optimized solution with ultimate scalability options to suit a wide range of applications and cost requirements.
The VAR-SOM-MX8M-MINI is pin-compatible with the VAR-SOM Pin2Pin family. The Pin2Pin family offers easy scaling between a wide range of modules based on i.MX8, i.MX8X, i.MX8M Mini, i.MX8M Nano, i.MX6 and i.MX6UL processors.

Note: All SOMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Wiki site.

Contact us for details about optimized cost/performance SoM configurations, available at low volumes of 25+ units.

Product specification

Stock configurations for Evaluation and Prototype

Ships within 4 working days
VAR-SOM-MX8M-MINI V2 with 1.8GHz CPU, Wi-Fi 6 & Commercial temperature range
  • NXP i.MX 8M Mini Quad, 1.8GHz, Cortex-A53 + Cortex-M4
  • 2GB RAM, 16GB eMMC
  • HQ audio, HD GPU
  • 1x GbE, CAN/CAN-FD bridge
  • Wi-Fi 802.11ax/ac/b/g/n
  • Bluetooth 5.4/BLE
  • LVDS interface
  • Resistive Touch Panel
  • 0 to 70°C
$120Per UnitAdd to cart
VAR-SOM-MX8M-MINI V2 with 1.6GHz CPU, Wi-Fi 6 & industrial temperature range
  • NXP i.MX 8M Mini Quad, 1.6GHz, Cortex-A53 + Cortex-M4
  • 2GB RAM, 16GB eMMC
  • HQ audio, HD GPU
  • 1x GbE, CAN/CAN-FD bridge
  • Wi-Fi 802.11ax/ac/b/g/n
  • Bluetooth 5.4/BLE
  • LVDS interface
  • Resistive Touch Panel
  • -40 to 85°C
$140Per UnitAdd to cart
VAR-SOM-MX8M-MINI with 1.8GHz CPU & Commercial temperature range
  • NXP i.MX 8M Mini Quad, 1.8GHz, Cortex-A53 + Cortex-M4
  • 2GB RAM, 16GB eMMC
  • HQ audio, HD GPU
  • 1x GbE, CAN/CAN-FD bridge
  • Wi-Fi 802.11ac/a/b/g/n
  • Bluetooth 5.2/BLE
  • LVDS interface
  • Resistive Touch Panel
  • 0 to 70°C
$120Per UnitAdd to cart
VAR-SOM-MX8M-MINI with 1.6GHz CPU & industrial temperature range
  • NXP i.MX 8M Mini Quad, 1.6GHz, Cortex-A53 + Cortex-M4
  • 2GB RAM, 16GB eMMC
  • HQ audio, HD GPU
  • 1x GbE, CAN/CAN-FD bridge
  • Wi-Fi 802.11ac/a/b/g/n
  • Bluetooth 5.2/BLE
  • LVDS interface
  • Resistive Touch Panel
  • -40 to 85°C
$140Per UnitAdd to cart

Special Offer for 1,000 Units

Baseline Configuration: VAR-SOM-MX8M-MINI
  • NXP i.MX 8M Mini Quad, 1.8GHz, Cortex-A53 + Cortex-M4
  • 1024MB RAM, 8GB eMMC
  • 0 to 70°C
$50Per UnitAdd to cart
