VAR-SOM-MX7 System on Module

Name: VAR-SOM-MX7 System on Module
Brand: Variscite
Price: 86 USD
Availability: InStock

Starting from $86.00

Ships within 4 working days

Not sure which SoM fits your needs?
Contact us and get an expert’s opinion

VAR-SOM-MX7 System on Module

Starting from $86.00

Ships within 4 working days

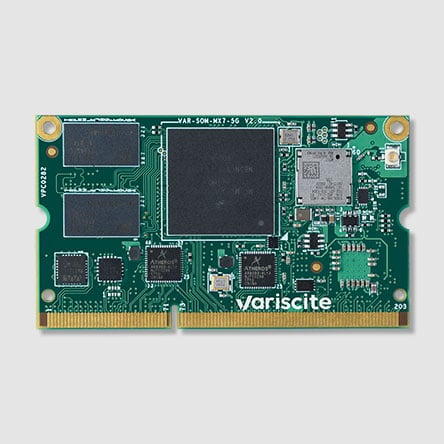

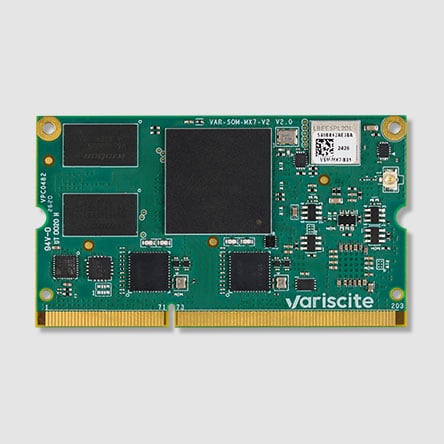

The VAR-SOM-MX7 is a highly flexible System-on-Module (SoM) based on NXP’s i.MX7 family, 1GHz Dual-core ARM Cortex-A7™ processor alongside real-time 200MHz ARM Cortex™-M4 co-processor.

Notes:

The price in the online store indicates low quantity stock items pricing, excluding shipment. For pricing of higher quantities and optimized SoM configurations, please submit a quote request here.
For any additional details on image loading, please see our Wiki site.

CPU Name: NXP i.MX7

All SOMs are preloaded with Linux U-Boot

Product specification

SOM Configuration

VAR-SOM-MX7 with 512MB NAND & Wi-Fi 802.11b/g/n$86

NXP i.MX7 1GHz Cortex-A7 + Cortex-M4
1024MB RAM, 512MB NAND
Audio Codec
2x GbE
Resistive Touch Panel
Wi-Fi 802.11b/g/n
Bluetooth 4.2/BLE
0 to 70°C

VAR-SOM-MX7 with 8GB eMMC & Wi-Fi 802.11b/g/n$91

NXP i.MX7 1GHz Cortex-A7 + Cortex-M4
1024MB RAM, 8GB eMMC
Audio Codec
2x GbE
Resistive Touch Panel
Wi-Fi 802.11b/g/n
Bluetooth 4.2/BLE
0 to 70°C

VAR-SOM-MX7 with 8GB eMMC, Dual-band Wi-Fi 802.11ac/a/b/g/n & Industrial temperature range$102

NXP i.MX7 1GHz Cortex-A7 + Cortex-M4
1024MB RAM, 8GB eMMC
Audio Codec
2x GbE
Resistive Touch Panel
Dual-band Wi-Fi 802.11ac/a/b/g/n
Bluetooth 4.2/BLE
-20 to 85

Clear

VAR-SOM-MX7 System on Module

VAR-SOM-MX7 System on Module
