VAR-SOM-MX6 System on Module

Name: VAR-SOM-MX6 System on Module
Brand: Variscite
Price: 141 USD
Availability: InStock

Starting from $141.00

Ships within 4 working days

Not sure which SoM fits your needs?
Contact us and get an expert’s opinion

VAR-SOM-MX6 System on Module

Starting from $141.00

Ships within 4 working days

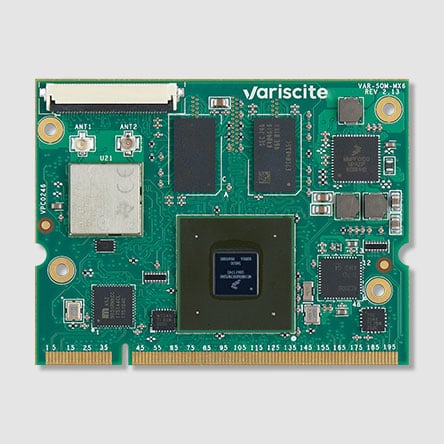

The VAR-SOM-MX6 sets the bar for unparalleled design flexibility, supporting NXP’s i.MX6 processor ARM Cortex-A9. The SoM is an ideal solution for industrial applications or intensive multimedia applications.

Notes:

The price in the online store indicates low quantity stock items pricing, excluding shipment. For pricing of higher quantities and optimized SoM configurations, please submit a quote request here.
For any additional details on image loading, please see our Wiki site.

CPU Name: NXP i.MX6

All SOMs are preloaded with Linux U-Boot

Product specification

SOM Configuration

VAR-SOM-MX6 with Quad 1000MHz CPU, 1024MB RAM & Wi-Fi 802.11b/g/n$141

NXP i.MX6 Quad, 1000MHz, Cortex-A9
1024MB RAM, 512MB NAND, 8GB eMMC
Audio Codec
1x GbE
4-wire Touch Panel
Wi-Fi 802.11b/g/n
Bluetooth 4.1/BLE
Local Bus / JTAG expansion connector
0 to 70°C

VAR-SOM-MX6 with Quad 1200MHz CPU, 2048MB RAM & Wi-Fi 802.11b/g/n$154

NXP i.MX6 Quad, 1200MHz, Cortex-A9
2048MB RAM, 512MB NAND, 8GB eMMC
Audio Codec
1x GbE
4-wire Touch Panel
Wi-Fi 802.11b/g/n
Bluetooth 4.1/BLE
Local Bus / JTAG expansion connector
0 to 70°C

VAR-SOM-MX6 with Quad 800MHz CPU, 1024MB RAM, Dual-band Wi-Fi 802.11a/b/g/n+MIMO & Industrial temperature range$164

NXP i.MX6 Quad, 800MHz, Cortex-A9
1024MB RAM, 512MB NAND, 8GB eMMC
Audio Codec
1x GbE
4-wire Touch Pane
Dual-band Wi-Fi 802.11a/b/g/n + MIMO
Bluetooth 4.1/BLE
Local Bus / JTAG expansion connector
-40 to 85°C

VAR-SOM-MX6 with QuadPlus 1000MHz CPU, 2048MB RAM & Dual-band Wi-Fi 802.11a/b/g/n+MIMO$164

NXP i.MX6 QuadPlus, 1000MHz, Cortex-A9
2048MB RAM, 512MB NAND, 8GB eMMC
Audio Codec1x GbE
4-wire Touch Panel
Dual-band Wi-Fi 802.11a/b/g/n + MIMO
Bluetooth 4.1/BLE
Local Bus / JTAG expansion connector
0 to 70°C

Clear

VAR-SOM-MX6 System on Module

VAR-SOM-MX6 System on Module
