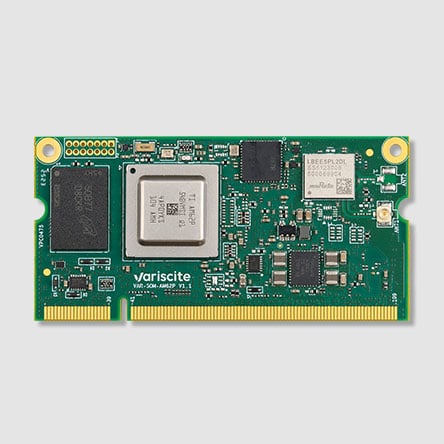

VAR-SOM-AM62P System on Module

Powered by the Texas Instruments Sitara™ AM62Px SoC, the VAR-SOM-AM62P combines a 1.4GHz quad-core Cortex®-A53 SoC with an 800MHz Cortex-R5F real-time co-processor and delivers robust performance for advanced multimedia applications with H.264/H.265 video encoding/decoding, a 3D GPU, and multi-screen support. The SoM offers extensive connectivity options, including certified Wi-Fi 6 (802.11ax/ac/a/b/g/n) with 802.15.4 and Bluetooth/BLE 5.4, dual Gigabit Ethernet, 4x CAN-FD, audio, camera input, and dual USB support. Built for industrial reliability, it operates within a -40°C to 85°C temperature range.

Note: All SoMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Variscite Developer Center.

Stock configurations for Evaluation and Prototype

Ships within 4 working days

SoM Configuration

Choose an optionVAR-SOM-AM62PVAR-SOM-AM62P with 1.4GHz CPU & Extended temperature range VAR-SOM-AM62P with 1.4GHz CPU & Extended temperature range TI AM62Px Quad, 1.4GHz, Cortex-A53 + Cortex-R5F 4096MB RAM, 16GB eMMC Audio Codec GbE Wi-Fi 802.11ax/ac/a/b/g/n Bluetooth 5.4/BLE Resistive touch panel -25 to 85°C $255Per Unit Special rates available for bulk orders Baseline Configuration: VAR-SOM-AM62P TI AM625P54 Quad 1.4GHz, Cortex-A53 + Cortex-R5F 1024MB RAM, 8GB eMMC -25 to 85°C $69Per UnitContact Us Clear

VAR-SOM-AM62P System on Module quantity
