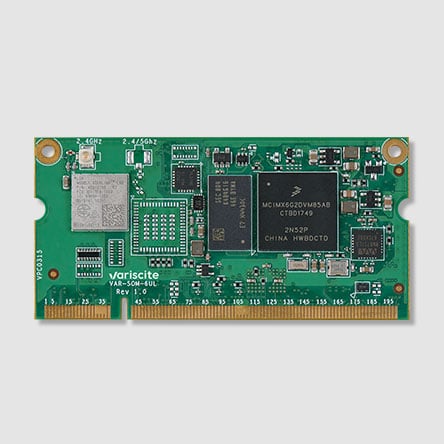

VAR-SOM-6UL System on Module

Starting from: $24.00

The VAR-SOM-6UL is highly flexible System-on-Module (SoM) based on NXP i.MX 6ULL ARM Cortex-A7 processor, up to 900MHz CPU Clock. The SoM provides a scalable pin-compatible option to i.MX 6 and i.MX 8/8X platforms.

Note: All SOMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Wiki site.

Contact us for details about optimized cost/performance SoM configurations, available at low volumes of 25+ units.

Product specification

Stock configurations for Evaluation and Prototype

Ships within 4 working days
VAR-SOM-6UL with i.MX 6ULL 792MHz, 8GB eMMC & Wi-Fi 802.11ac/a/b/g/n & Industrial temperature range
  • NXP i.MX 6ULL Y2, 792MHz, Cortex-A7
  • 512MB RAM, 8GB eMMC
  • LVDS display output
  • Audio Codec
  • 2x 10/100 Mbps Ethernet
  • Wi-Fi 802.11ac/a/b/g/n
  • Bluetooth 5.2/BLE
  • -40 to 85°C
$99Per UnitAdd to cart
VAR-SOM-6UL with i.MX 6ULL 900MHz, 512MB NAND & Wi-Fi 802.11b/g/n
  • NXP i.MX 6ULL Y2, 900MHz, Cortex-A7
  • 512MB RAM, 512MB NAND
  • LVDS display output
  • Audio Codec
  • 2x 10/100 Mbps Ethernet
  • Wi-Fi 802.11b/g/n
  • Bluetooth 5.1/BLE
  • 0 to 70°C
$75Per UnitAdd to cart
VAR-SOM-6UL with i.MX 6ULL 900MHz, 8GB eMMC & Wi-Fi 802.11b/g/n
  • NXP i.MX 6ULL Y2, 900MHz, Cortex-A7
  • 512MB RAM, 8GB eMMC
  • LVDS display output
  • Audio Codec
  • 2x 10/100 Mbps Ethernet
  • Wi-Fi 802.11b/g/n
  • Bluetooth 5.1/BLE
  • 0 to 70°C
$80Per UnitAdd to cart

Special Offer for 1,000 Units

Baseline Configuration: VAR-SOM-6UL
  • NXP i.MX 6ULL Y2, 528MHz, Cortex-A7
  • 128MB RAM, 128MB NAND
  • 0 to 70°C
$24Per UnitAdd to cart
