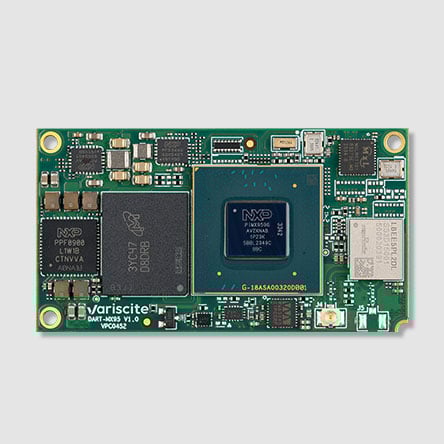

DART-MX95 System on Module

Starting from: $69.00

The DART-MX95 is powered by the NXP i.MX95 SoC, which implements an energy flex architecture based on multiple heterogeneous processing units including up to 6 cores 2.0GHz Arm Cortex®-A55 plus two independent real-time co-processors: a 800MHz Arm Cortex-M7 and an 250MHz Arm Cortex-M33. This unique multi-core architecture offers high-speed data processing alongside high-performance real-time and safety/low-power uses.

The DART-MX95 is compatible with the DART Pin2Pin family.

Note: the current DART-MX95 evaluation kits and modules are provided with the i.MX 95 engineering samples version from NXP

Note: All SoMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Wiki site.

Contact us for details about optimized cost/performance SoM configurations, available at low volumes of 25+ units.

Product specification

Stock configurations for Evaluation and Prototype

Ships within 4 working days
DART-MX95 with 1.8GHz CPU, Wi-Fi 6 & Extended temperature range
  • NXP i.MX 95, 6x 1.8GHz, Cortex-A55 + Cortex-M7 + Cortex-M33
  • 8GB RAM, 32GB eMMC
  • Integrated Image Signal Processing (ISP)
  • Audio codec
  • 2x GbE + 1x 10GbE
  • 5x CAN-FD
  • Wi-Fi 6 802.11ax/ac/a/b/g/n
  • Bluetooth 5.4/BLE
  • -25 to 85°C
$245Per UnitAdd to cart

Special Offer for 1,000 Units

Baseline Configuration: DART-MX95
  • NXP i.MX 95, 4x 1.8GHz, Cortex-A55 + Cortex-M7 + Cortex-M33
  • 2GB RAM, 8GB eMMC
  • Without Image Signal Processing (ISP)
  • 2x GbE + 1x 10GbE
  • 5x CAN-FD
  • 0 to 70°C
$69Per UnitAdd to cart
