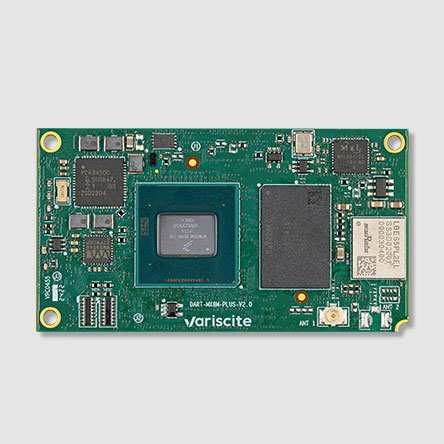

DART-MX8M-PLUS System on Module

Starting from: $59.00

The future of smart embedded systems, packed in a small-size 55 x 30mm form factor. The DART-MX8M-PLUS runs on 1.8GHz Quad Cortex™-A53 NXP i.MX 8M Plus processor with 800MHz Cortex™-M7 Real-time co-processor. It is the first i.MX processor to provide dedicated Artificial Intelligence / Machine Learning (AI/ML) capabilities with integrated Neural Processing Unit (NPU), and an intelligent vision system based on Image Signal Processor (ISP) and camera interfaces.

The DART-MX8M-PLUS is pin-compatible with the DART Pin2Pin family.

Note: All SOMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Wiki site.

Contact us for details about optimized cost/performance SoM configurations, available at low volumes of 25+ units.

Product specification

Stock configurations for Evaluation and Prototype

Ships within 4 working days
DART-MX8M-PLUS V2 with 1.6GHz CPU, Wi-Fi 6 & Industrial temperature range
  • NXP i.MX 8M Plus Quad, 1.6GHz, Cortex-A53 + Cortex-M7
  • AI/ML acceleration
  • Audio Codec
  • 4GB RAM, 16GB eMMC
  • 2x CAN/CAN-FD, 2x GbE
  • Wi-Fi 802.11ax/ac/a/b/g/n
  • Bluetooth 5.4/BLE
  • LVDS interface
  • Resistive Touch Panel
  • -40 to 85°C
$169Per UnitAdd to cart
DART-MX8M-PLUS V2 with 1.8GHz CPU, Wi-Fi 6 & Commercial temperature range
  • NXP i.MX 8M Plus Quad, 1.8GHz, Cortex-A53 + Cortex-M7
  • AI/ML acceleration
  • Audio Codec
  • 4GB RAM, 16GB eMMC
  • 2x CAN/CAN-FD, 2x GbE
  • Wi-Fi 802.11ax/ac/a/b/g/n
  • Bluetooth 5.4/BLE
  • LVDS interface
  • 0 to 70°C
$145Per UnitAdd to cart
DART-MX8M-PLUS with 1.8GHz CPU, Wi-Fi 5 & Commercial temperature range
  • NXP i.MX 8M Plus Quad, 1.8GHz, Cortex-A53 + Cortex-M7
  • AI/ML acceleration
  • Audio Codec
  • 4GB RAM, 16GB eMMC
  • 2x CAN/CAN-FD, 2x GbE
  • Wi-Fi 802.11ac/a/b/g/n
  • Bluetooth 5.2/BLE
  • LVDS interface
  • 0 to 70°C
$145Per UnitAdd to cart
DART-MX8M-PLUS with 1.6GHz CPU, Wi-Fi 5 & Industrial temperature range
  • NXP i.MX 8M Plus Quad, 1.6GHz, Cortex-A53 + Cortex-M7
  • AI/ML acceleration
  • Audio Codec
  • 4GB RAM, 16GB eMMC
  • 2x CAN/CAN-FD, 2x GbE
  • Wi-Fi 802.11ac/a/b/g/n
  • Bluetooth 5.2/BLE
  • LVDS interface
  • -40 to 85°C
$169Per UnitAdd to cart

Special Offer for 1,000 Units

Baseline Configuration: DART-MX8M-PLUS
  • NXP i.MX 8M Plus Quad 1.8GHz, Cortex-A53 + Cortex-M7
  • 1024MB RAM, 8GB eMMC
  • 0 to 70°C
$59Per UnitAdd to cart
