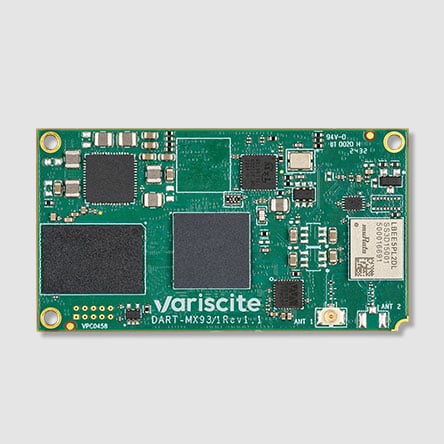

DART-MX93 System on Module

Powered by NXP’s i.MX93 with up to a 1.7GHz Dual Cortex-A55 processor, plus a 250MHz Cortex-M33 real-time co-processor, the DART-MX93 SoM integrates a machine learning (AI/ML) engine and an energy-flex architecture for power-efficient processing. The System on Module / Computer on Module supports a variety of integrated interfaces like camera inputs, 2x CAN bus, 2x GbE, audio in/out, ADC, 2x USB, certified Wi-Fi 6 dual-band 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.3, LVDS display outputs, all supported in industrial temperature grade.

The DART-MX93 is compatible with the DART Pin2Pin family.

Note: All SoMs are preloaded with Linux U-Boot. For loading of the entire software image, please see our Variscite Developer Center.

Stock configurations for Evaluation and Prototype

Ships within 4 working days

SoM Configuration

Choose an optionDART-MX93 with 1.7GHz CPU, Wi-Fi 6 & Extended temperature rangeDART-MX93 DART-MX93 with 1.7GHz CPU, Wi-Fi 6 & Extended temperature range NXP i.MX 93 Dual, 1.7GHz, Cortex-A55 + Cortex-M33 2048MB RAM, 16GB eMMC Audio codec 2x CAN/CAN-FD, 2x GbE Wi-Fi 802.11ax/ac/a/b/g/n Bluetooth 5.4/BLE -25 to 85°C $145Per Unit Special rates available for bulk orders Baseline Configuration: DART-MX93 NXP i.MX 93 Single 1.7GHz, Cortex-A55 + Cortex-M33 512MB RAM, 8GB eMMC 0 to 70°C $39Per UnitContact Us Clear

DART-MX93 System on Module quantity
